Firefly Lightbar (10"- 20")

Allow us to introduce the Firefly LED bars, seamlessly integrating with your vehicle while delivering exceptional performance. The result of cutting-edge engineering and our attention to detail.

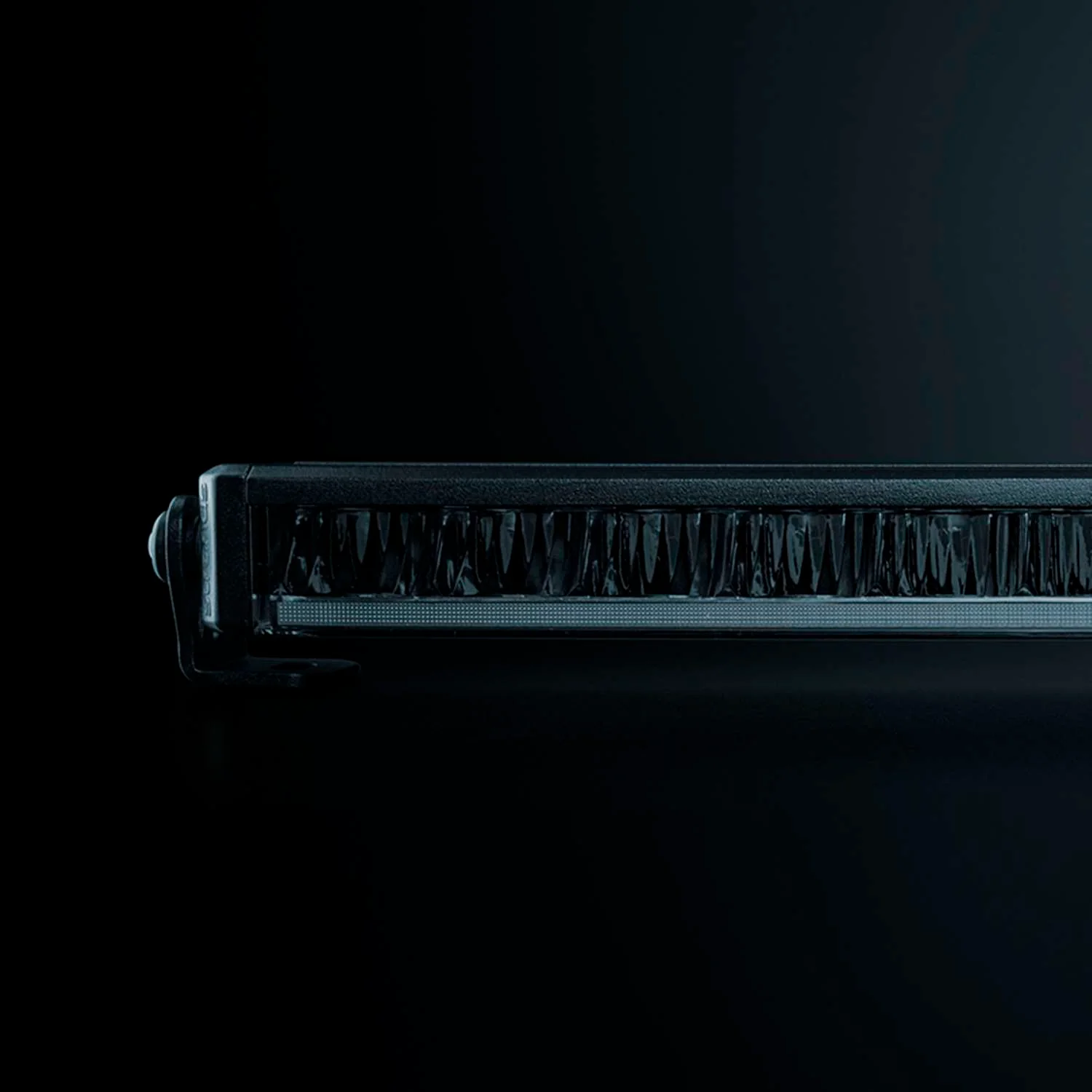

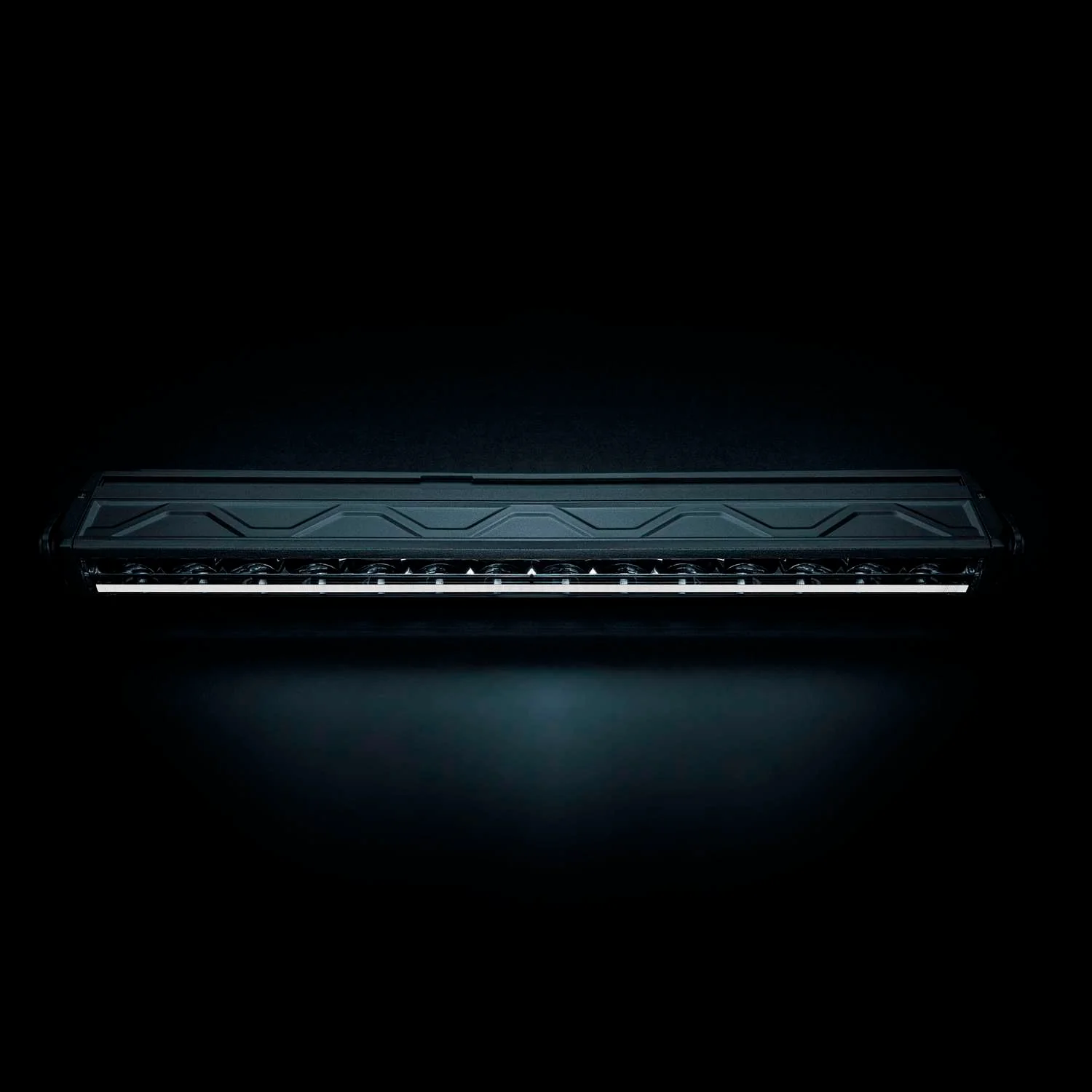

The Firefly LED bars is an absolute game-changer in LED innovation and design. With only 70 mm in depth and a height of 38.5 mm, this LED bar is remarkably slim, setting new standards with a unique design.

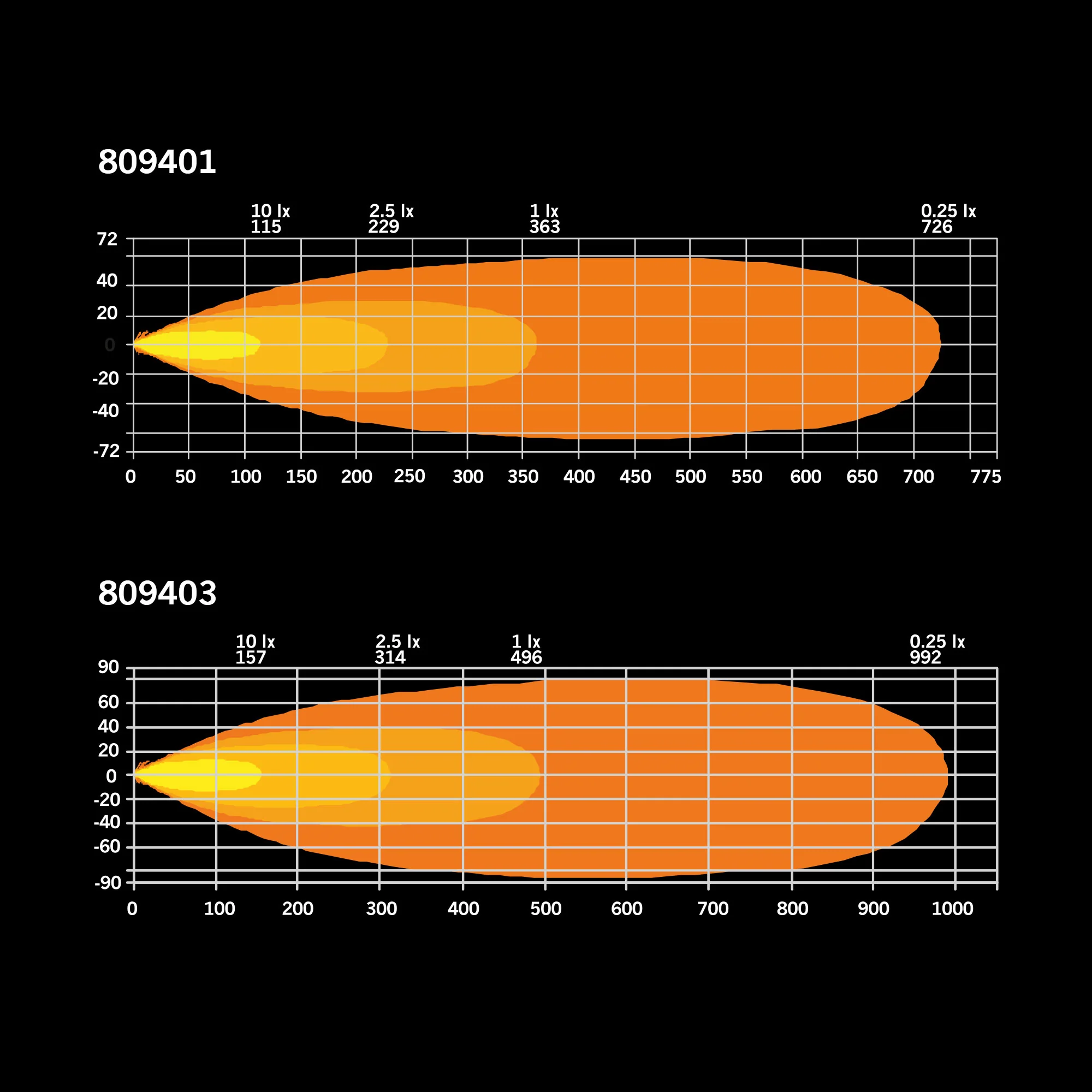

Despite its size, it’s a single-row masterpiece. It delivers maximum performance like no other, providing a sharp and wide beam pattern of 10″ 5010 actual lumens and 1 lux at 363 meters and 20″ 10 670 actual lumens and 1 lux at 496 meters. Ready to guide you forward with clarity and precision.

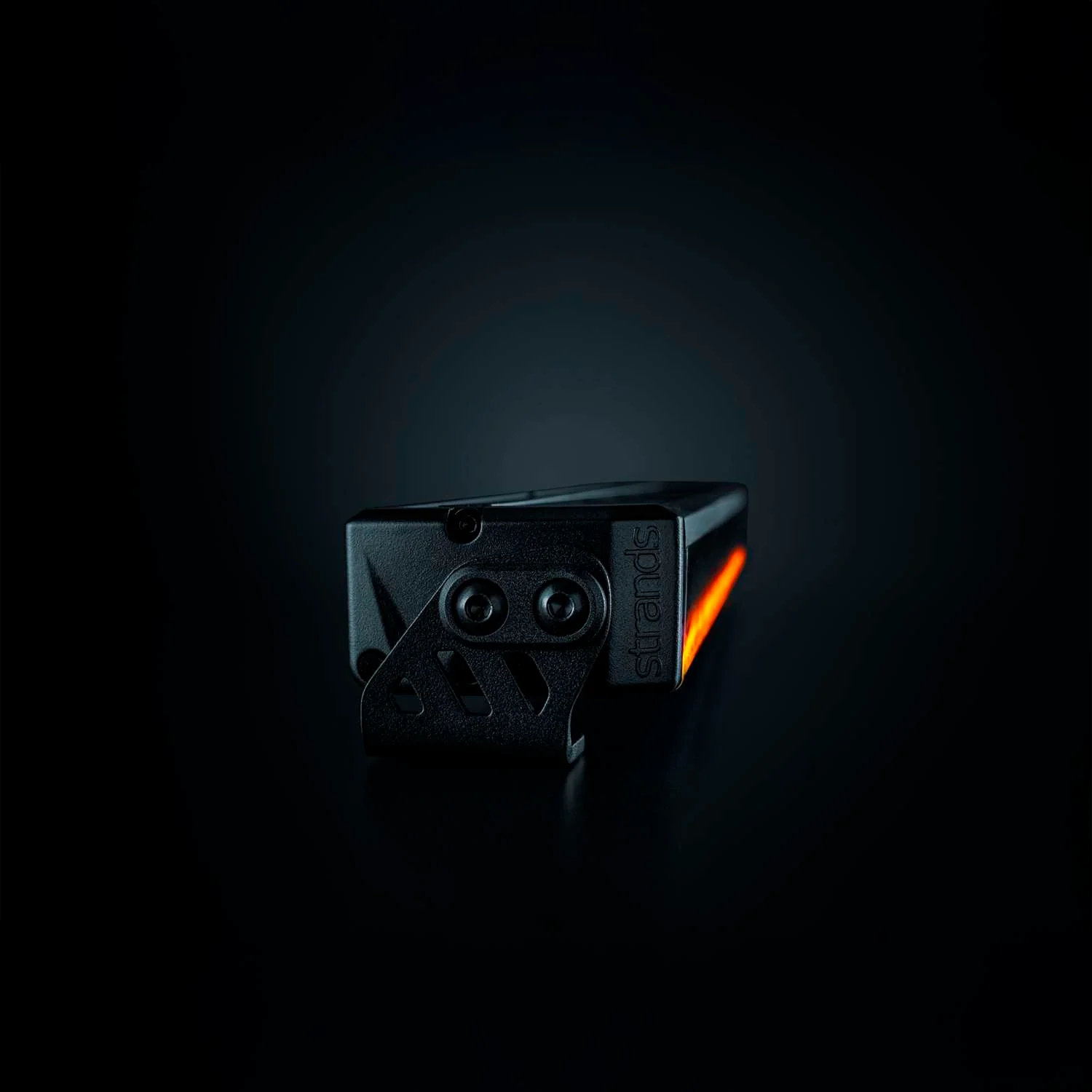

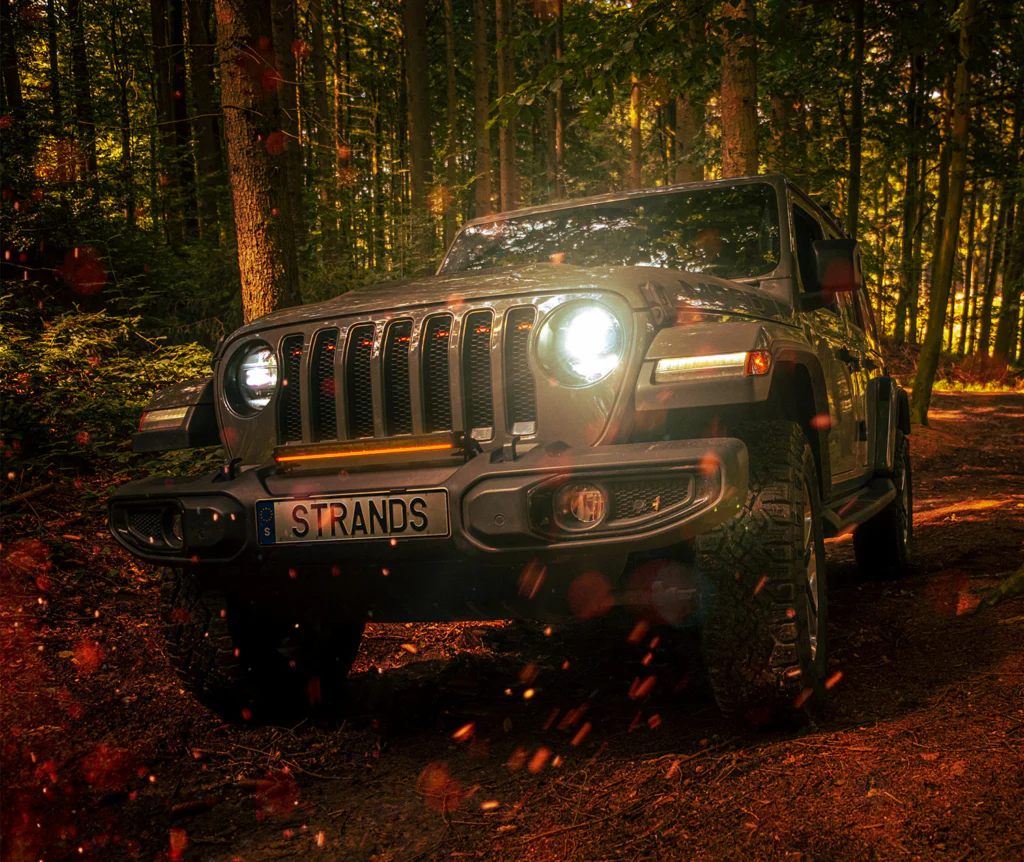

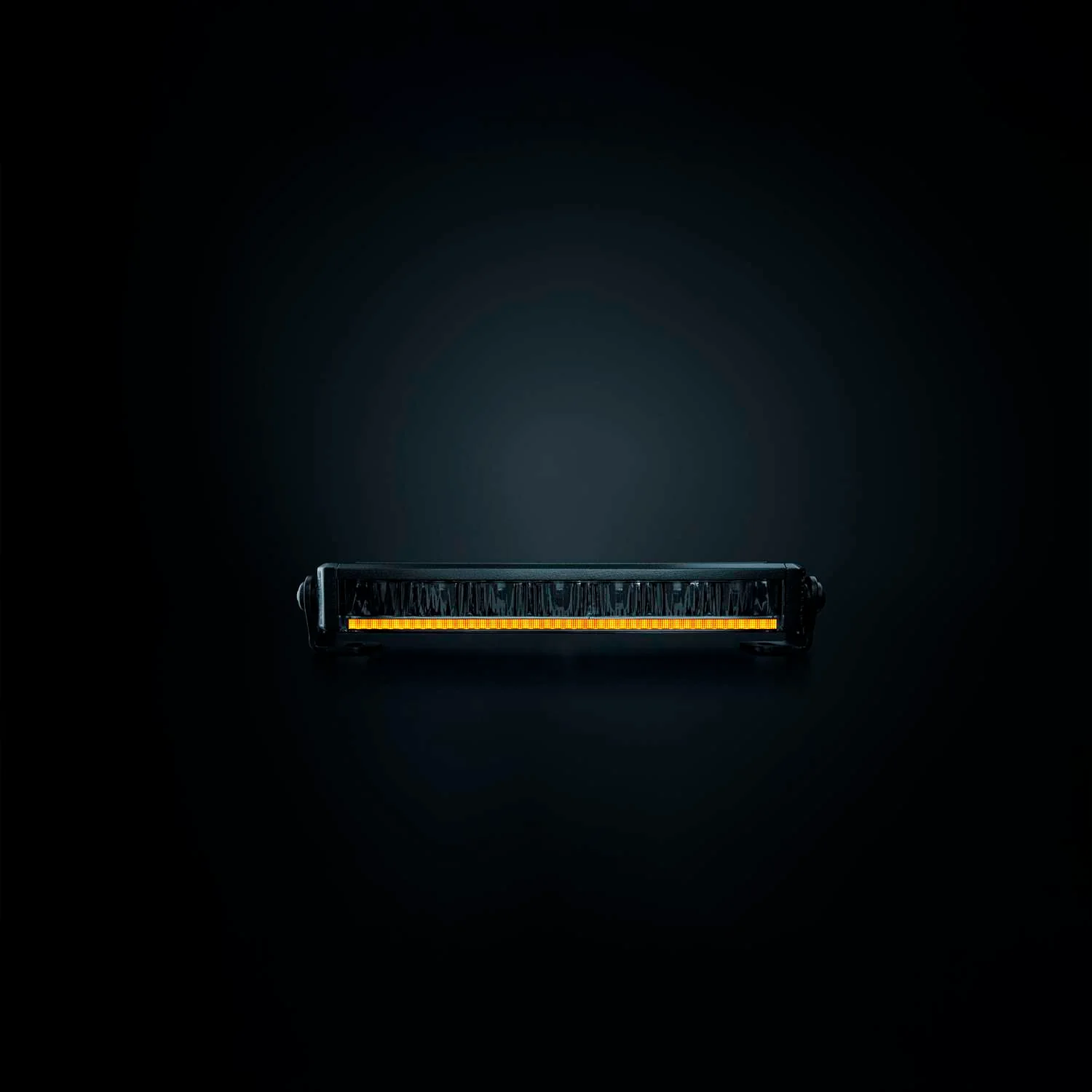

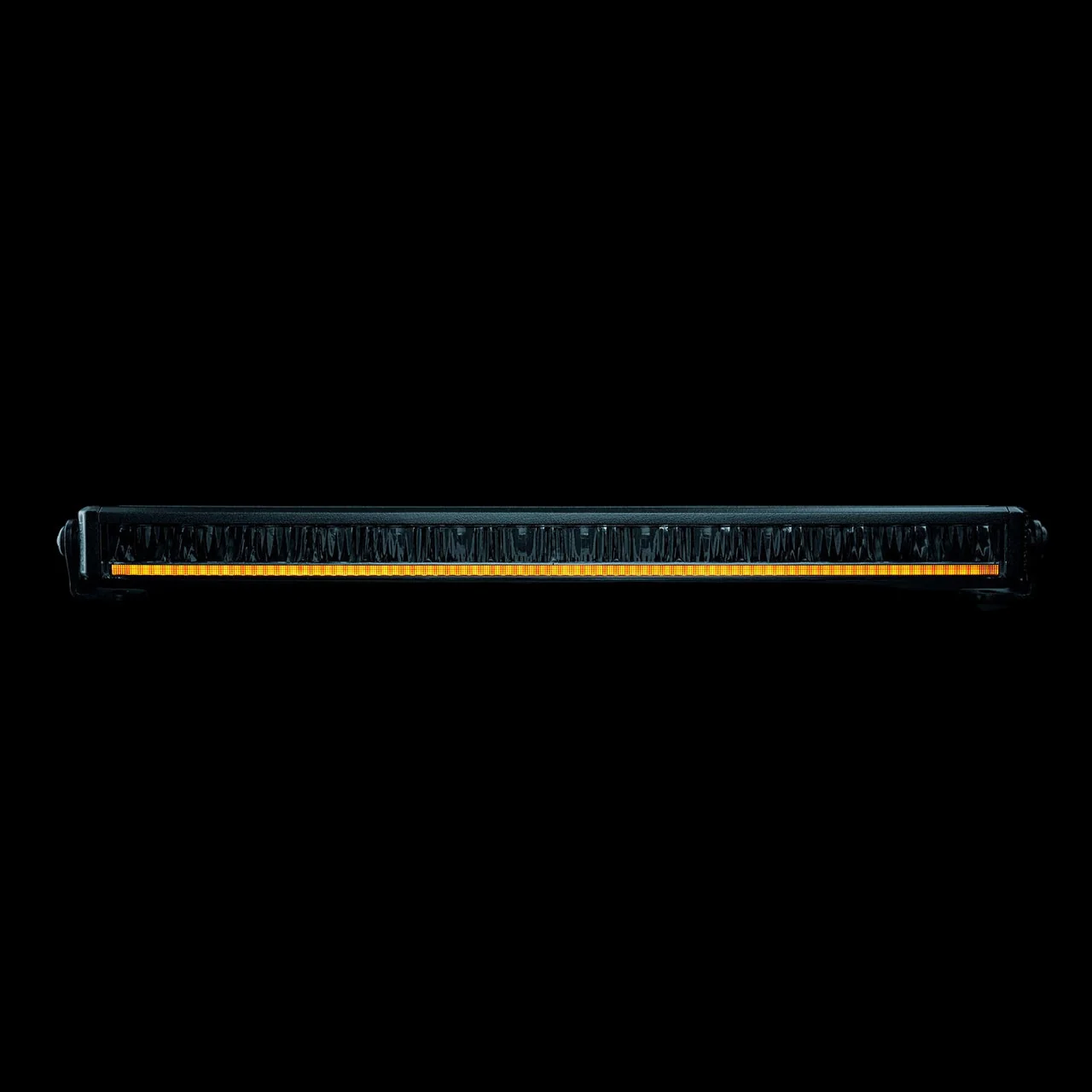

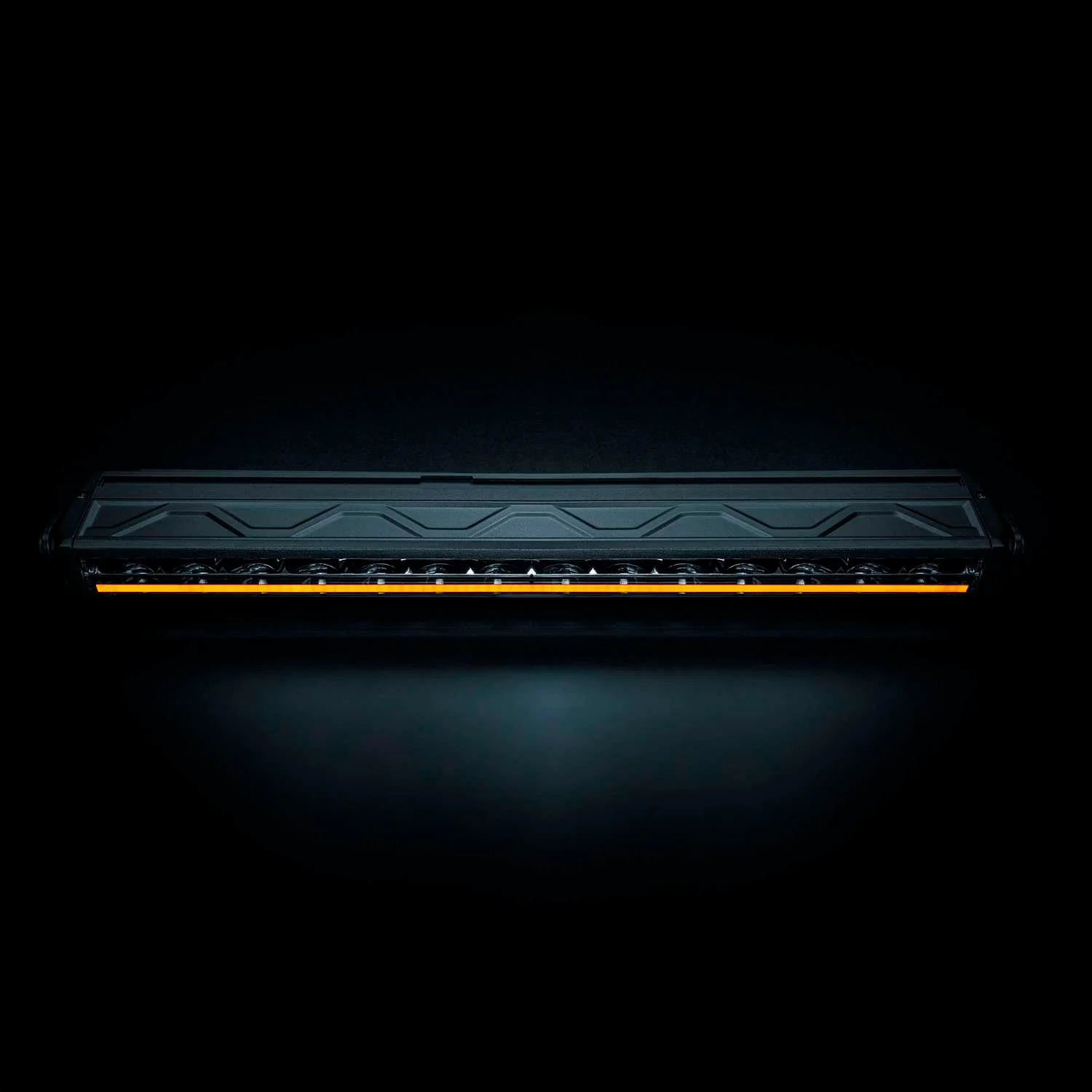

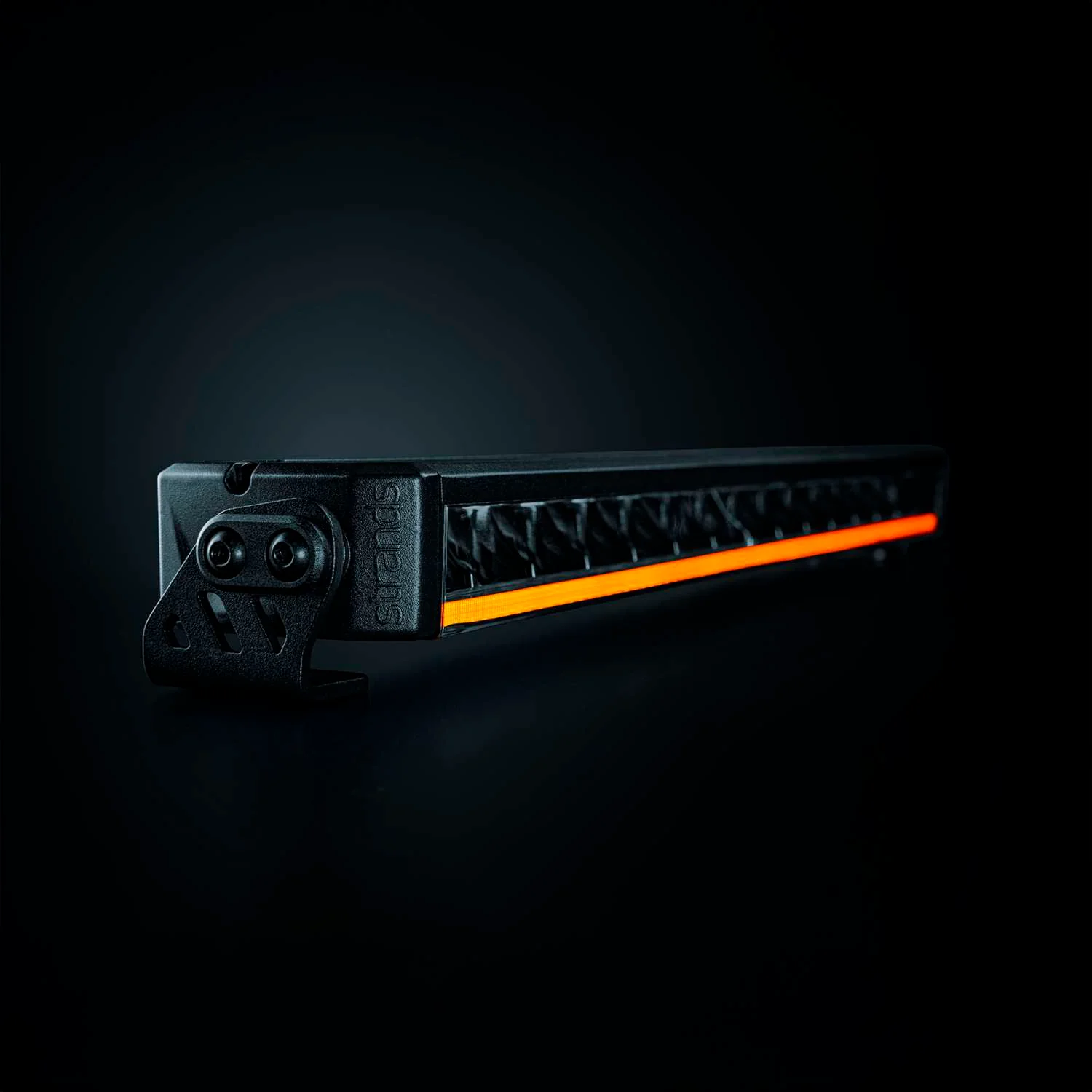

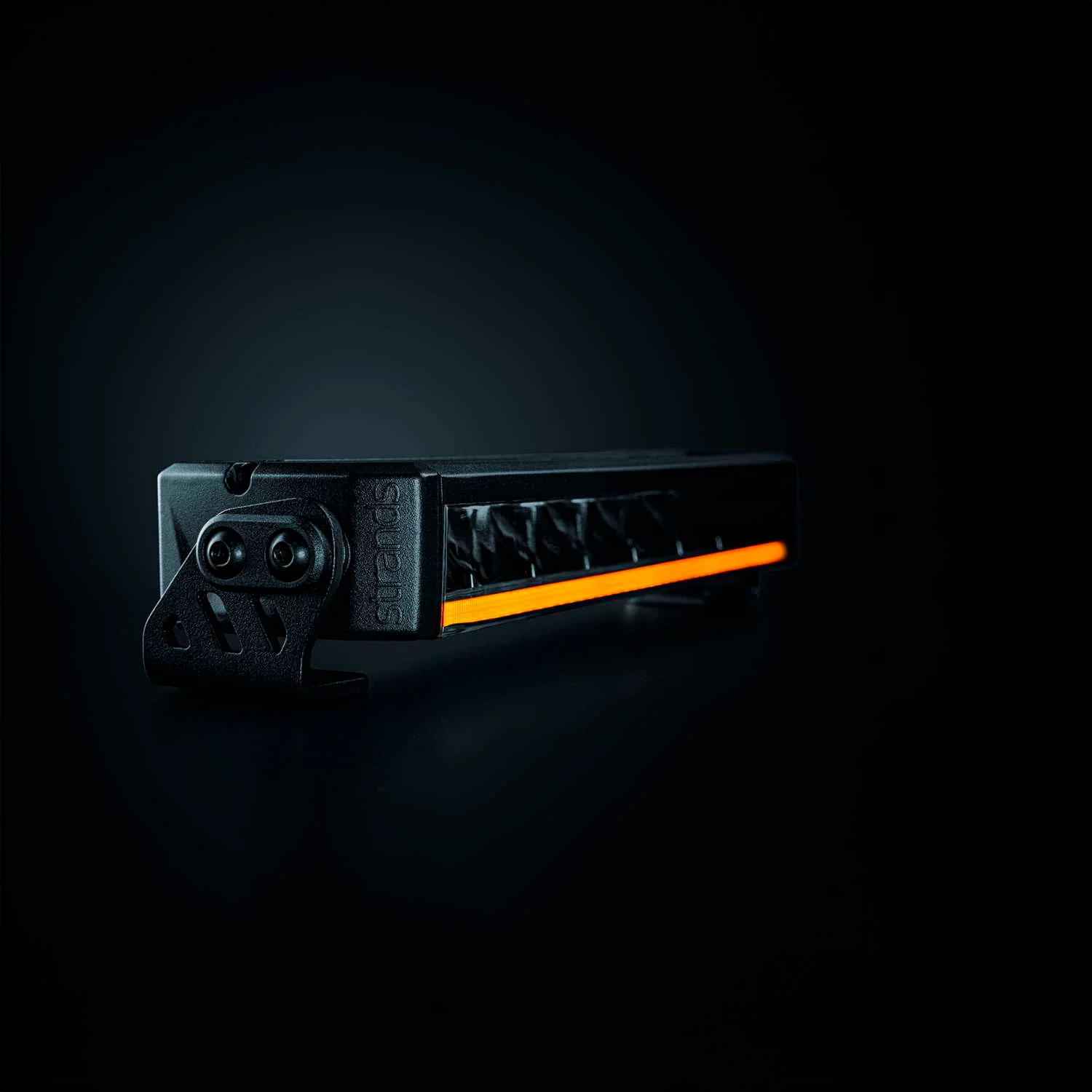

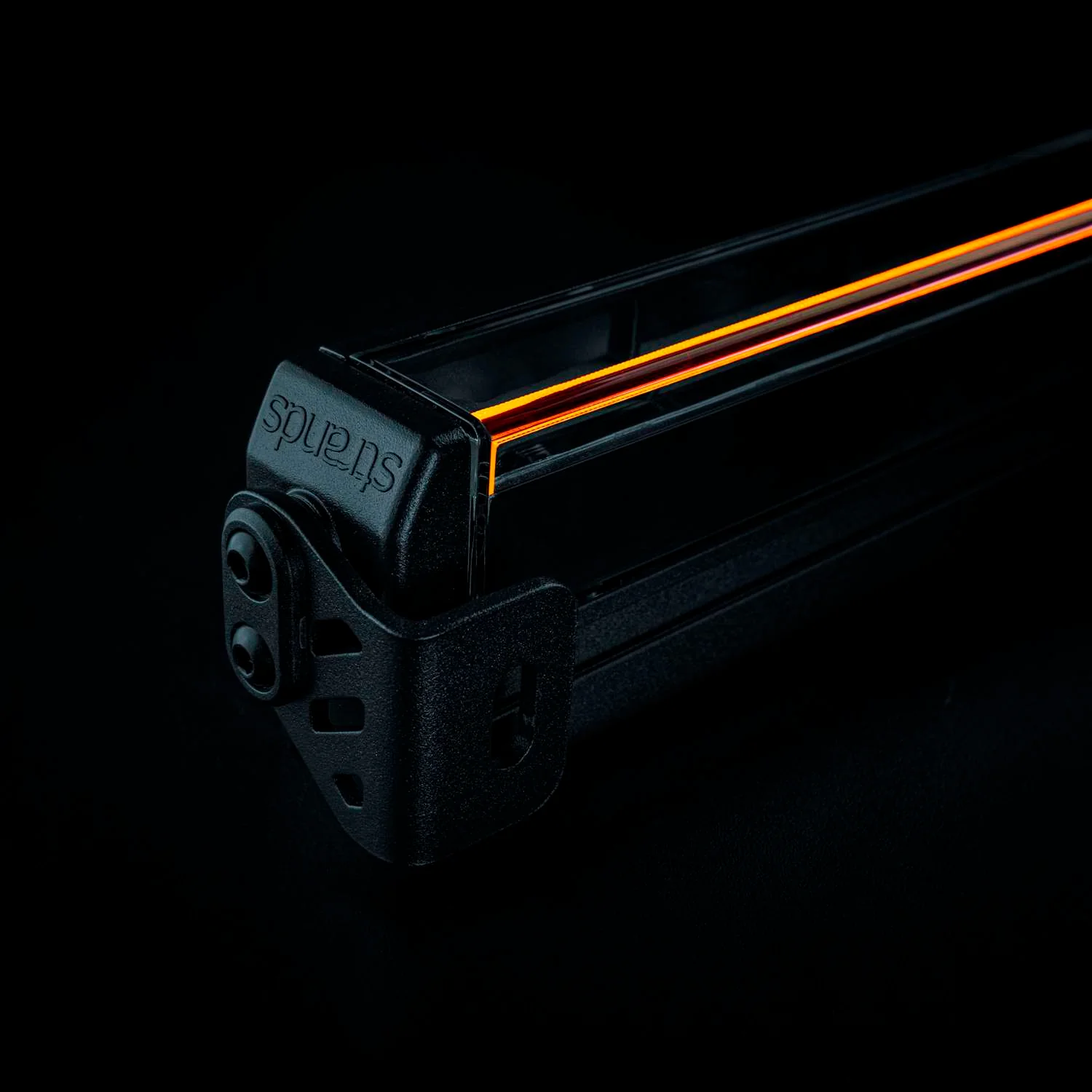

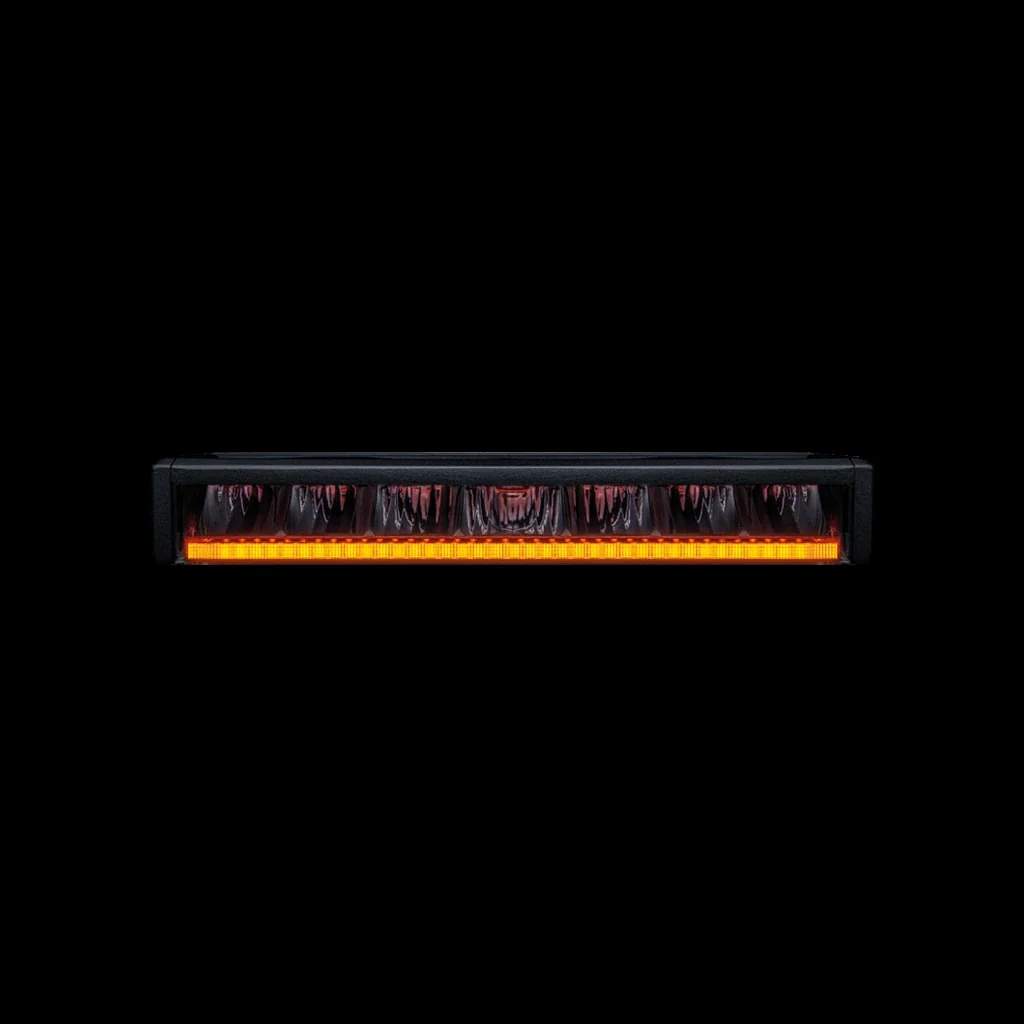

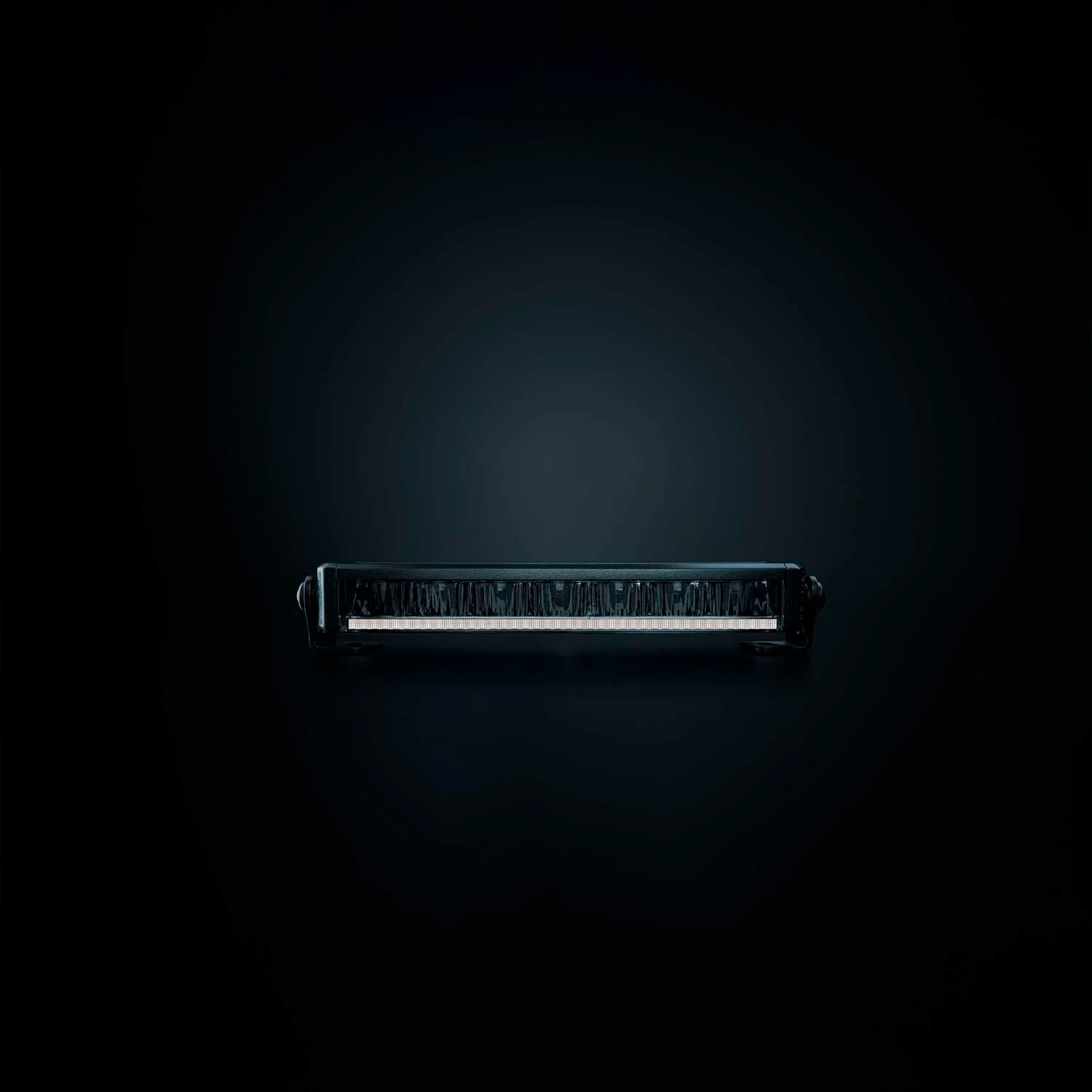

Prepare to leave a lasting impression as you navigate the night with the Firefly LED bar. Its unique dual-position light creates a captivating amber glow beneath the LEDs, guiding your way like a Firefly.

The Firefly LED bar doesn’t just illuminate the road; it becomes an integral part of your vehicle´s DNA. The invisible design makes your vehicle´s exterior uncompromised while enhancing functionality and style.

Each component is important for the result, and we have developed the perfect LED bar based on our experience to protect you from the challenging environment. The lens is made of unbreakable polycarbonate, and the light is E-approved and waterproof, meeting the highest IP standards for ultimate protection.

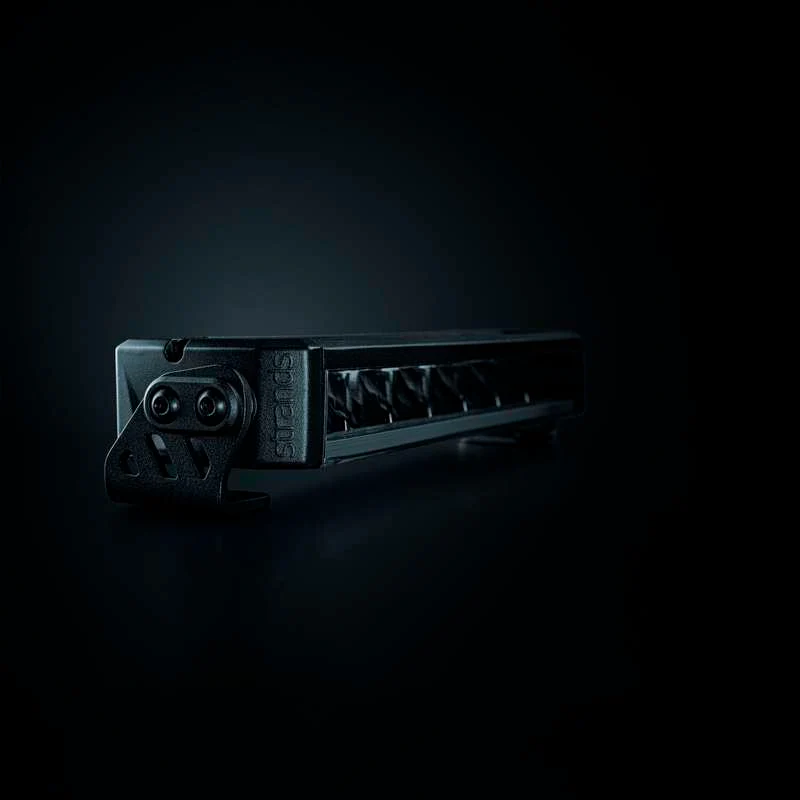

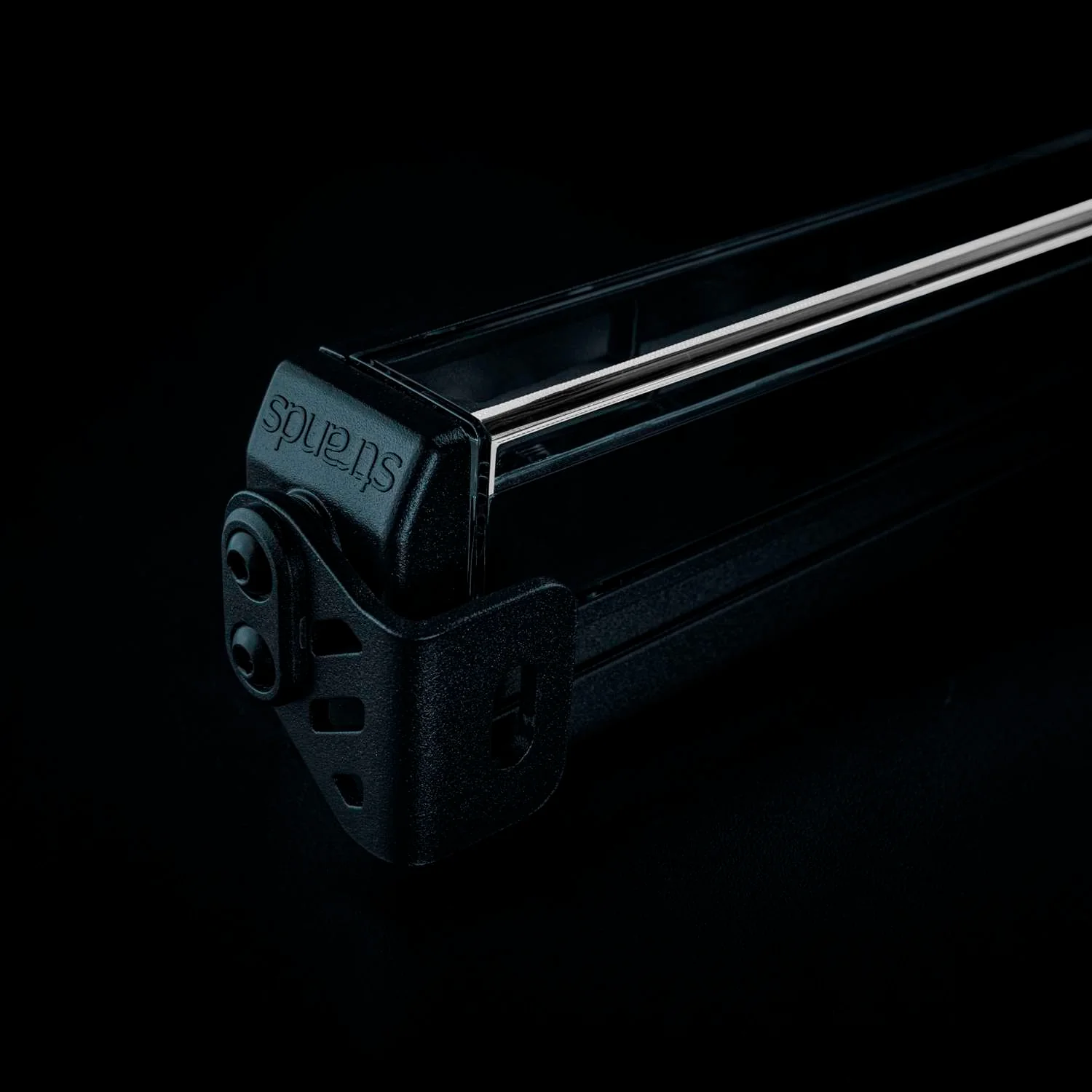

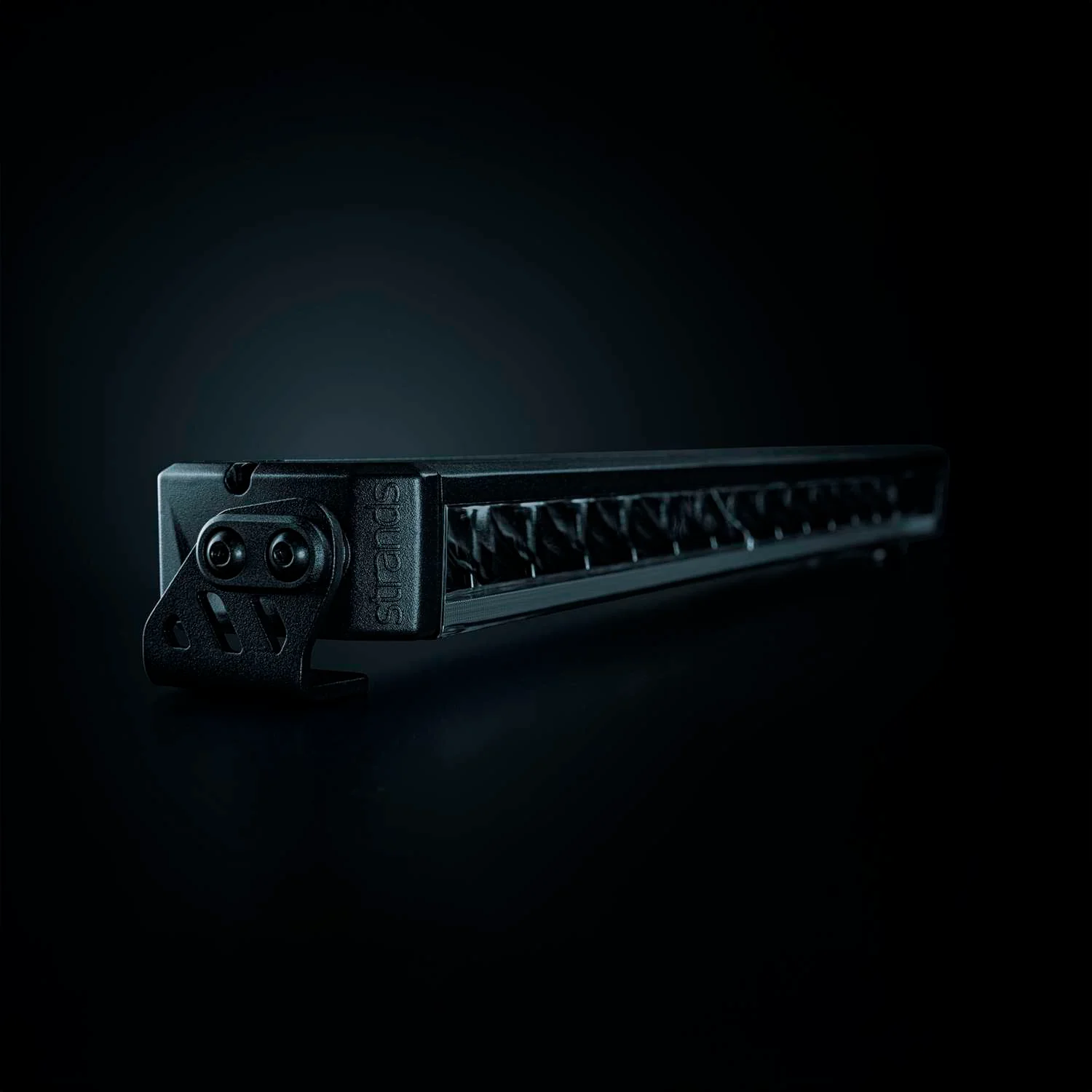

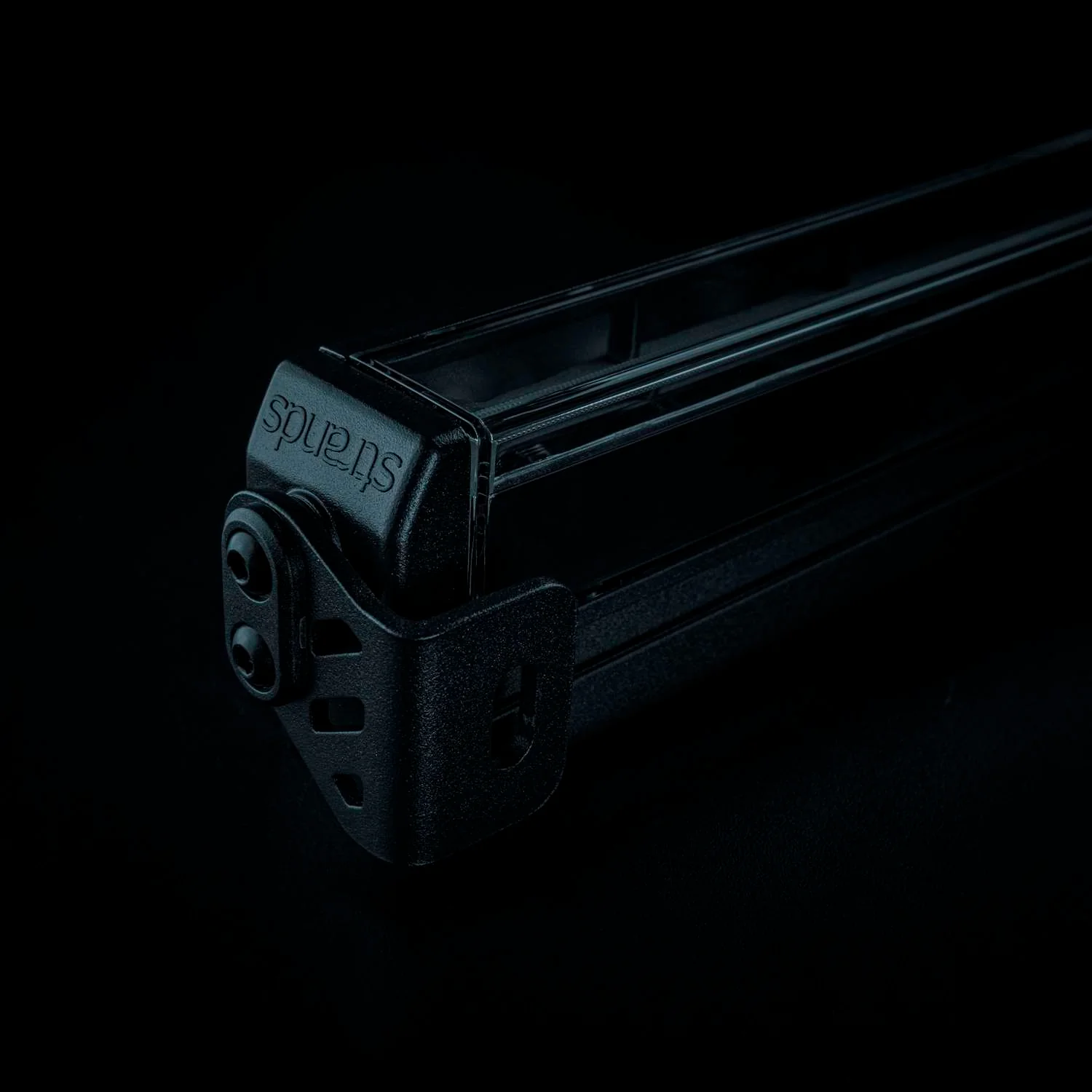

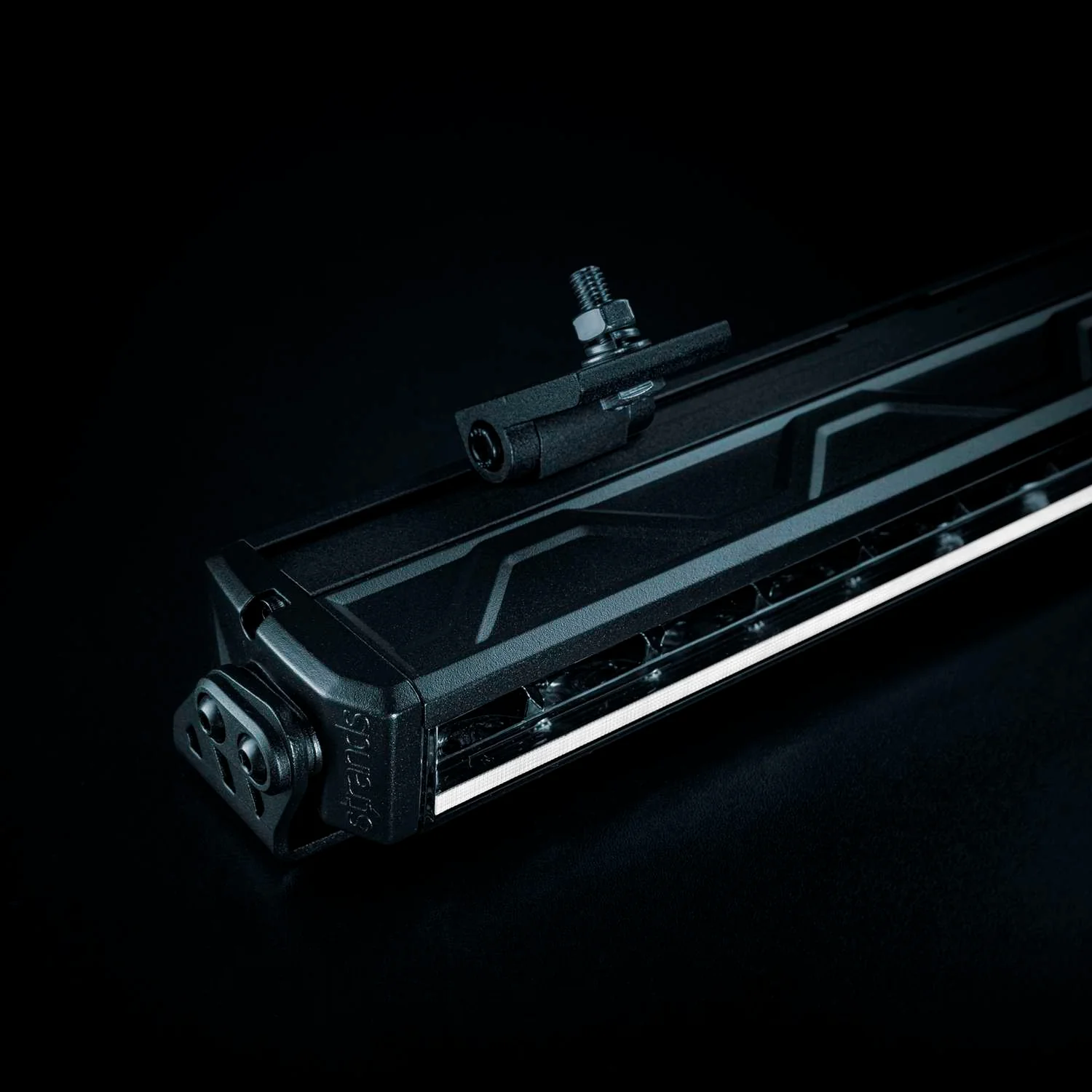

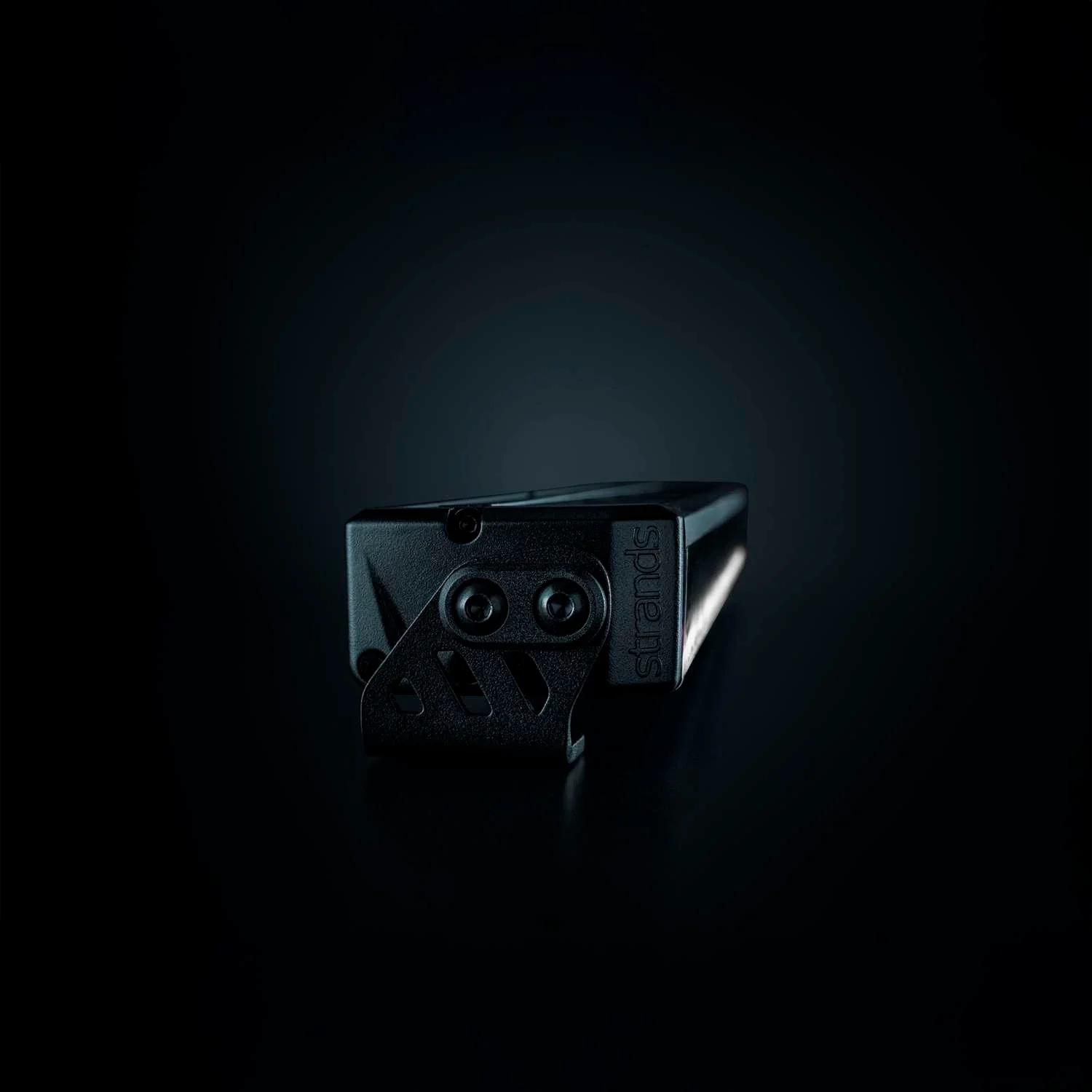

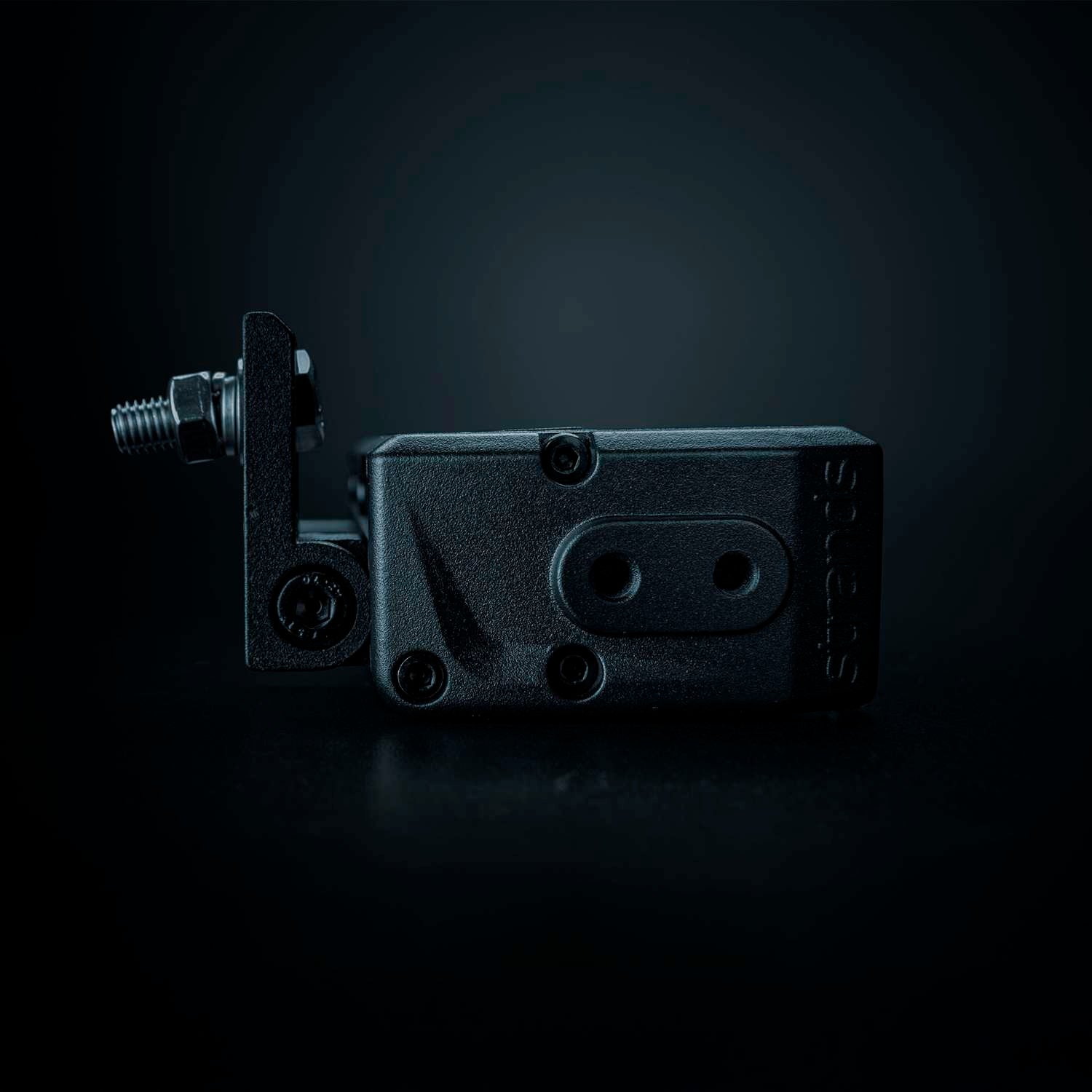

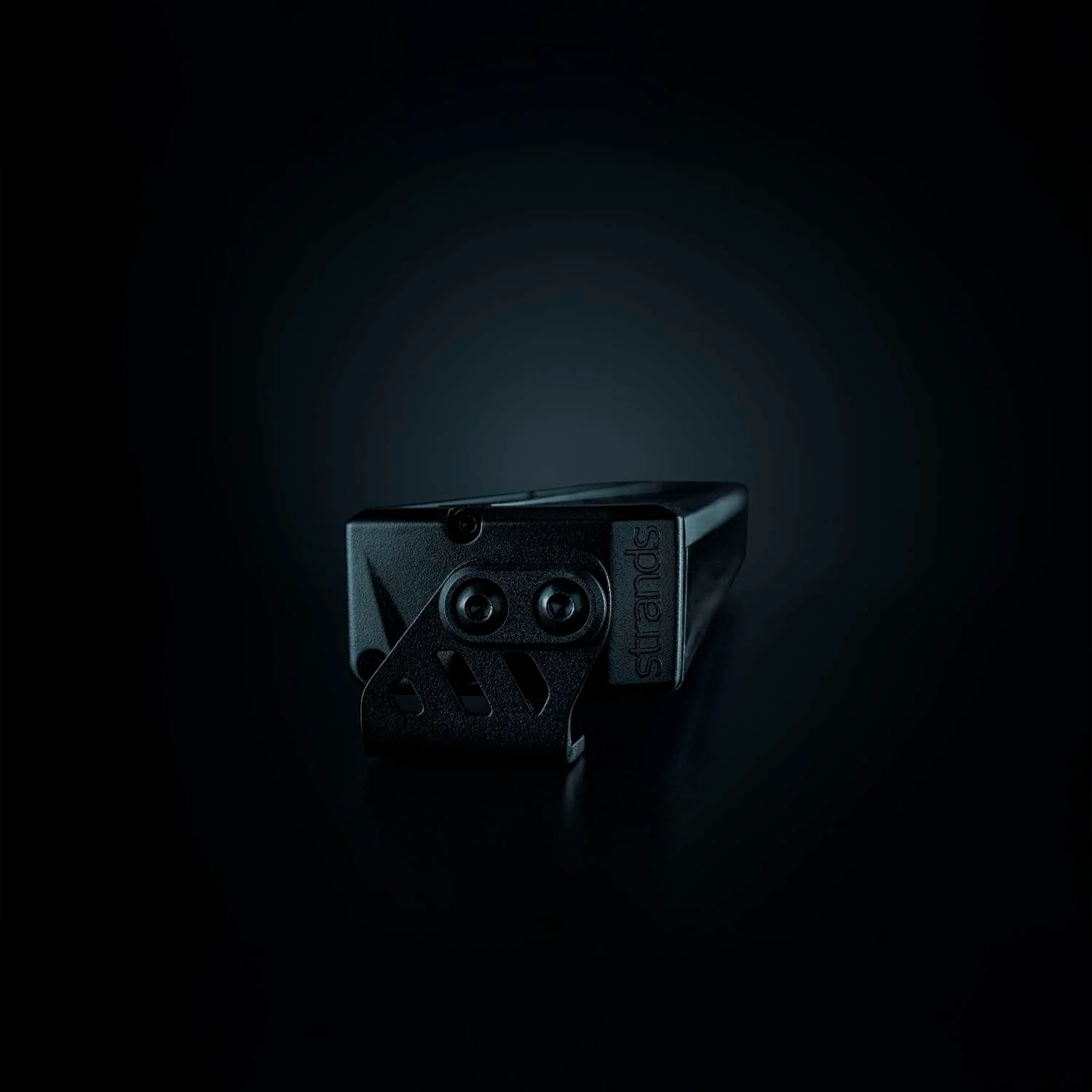

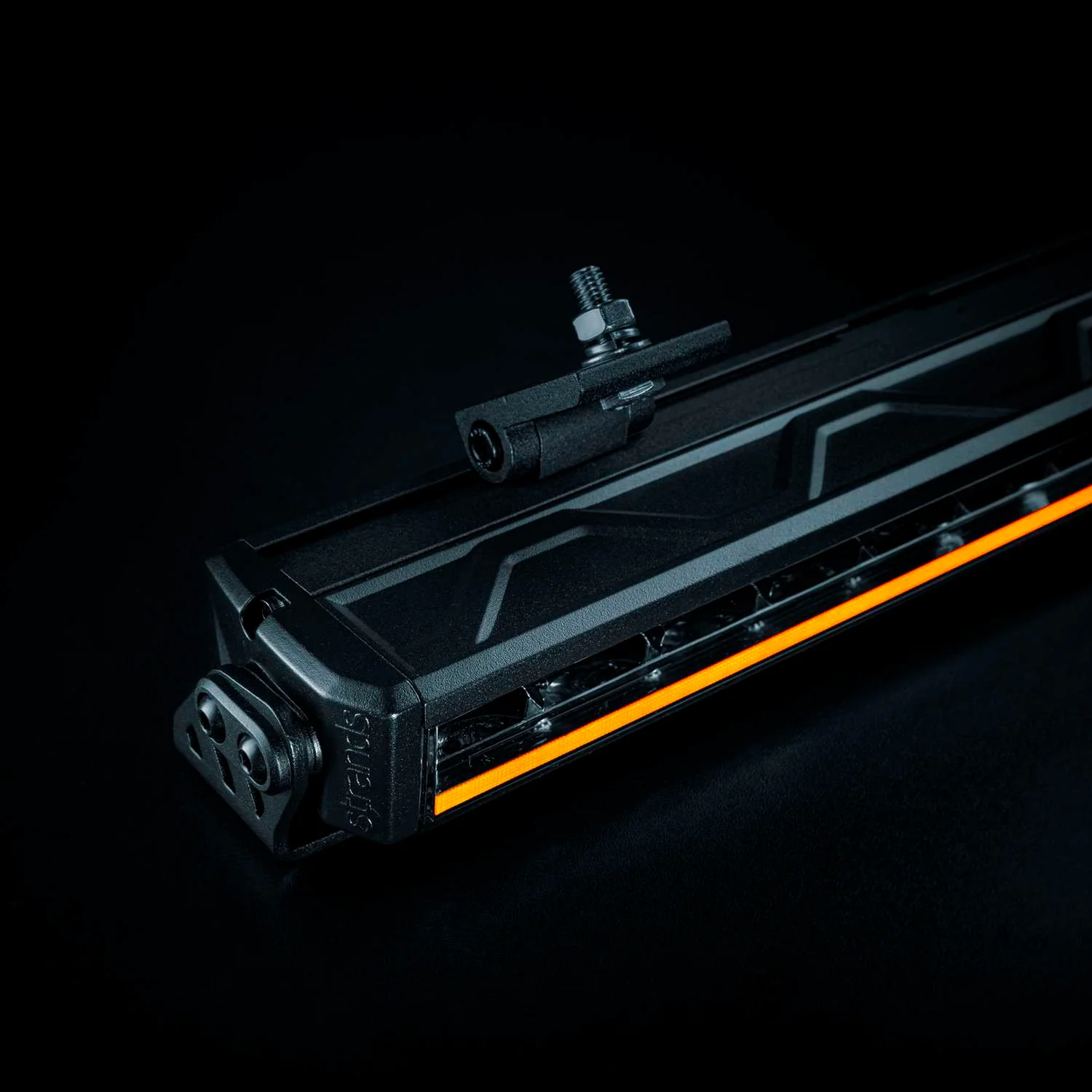

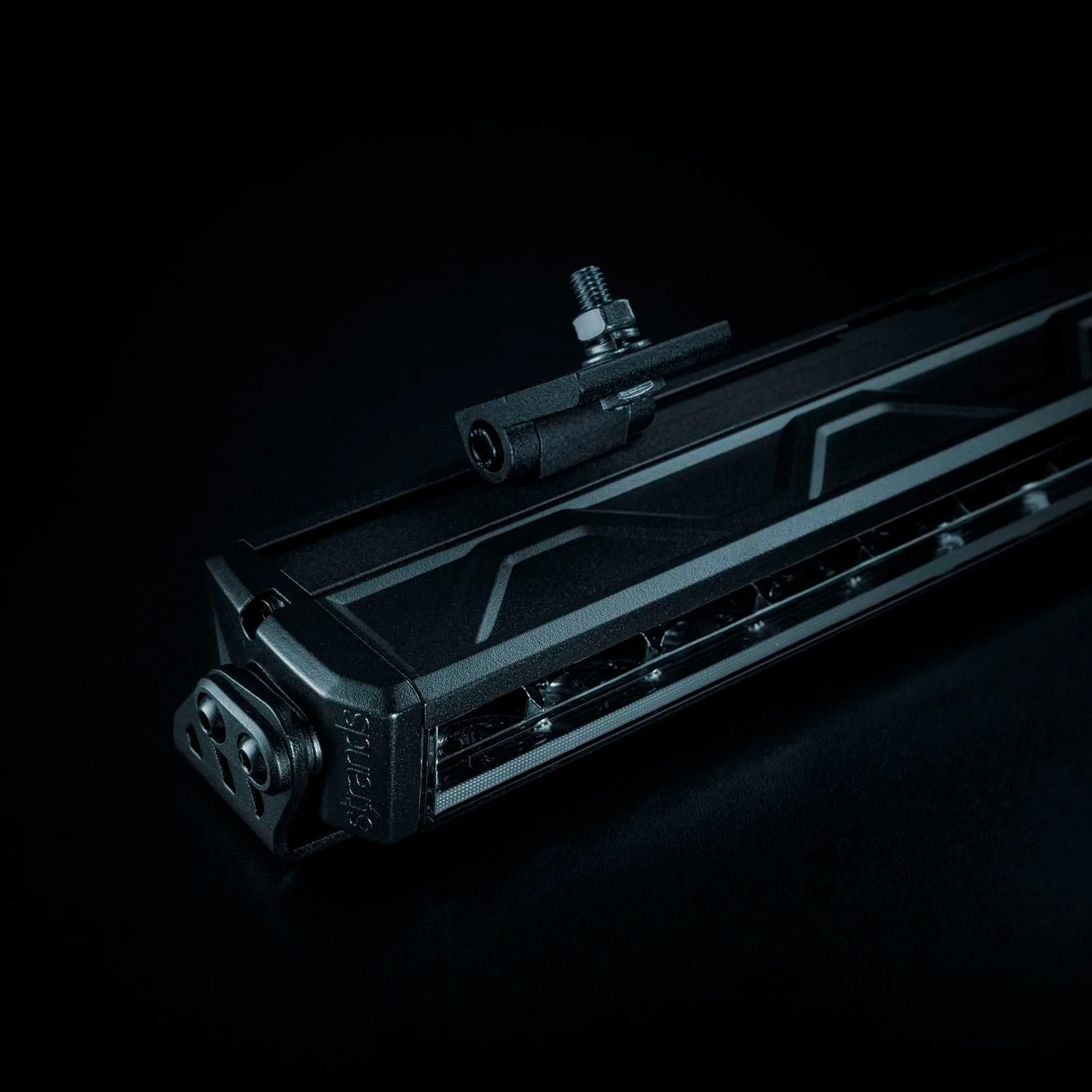

Installation is a breeze with two mounting options. Choose side brackets for a stable, traditional setup, or use adjustable brackets on the side, top, or below the LED bar to tailor the installation to your specific preferences. With included brackets, screws, and a 50 cm cable, securing it is a quick task. The package also included a DT-4 contact for easy connections. Its compact size is ideal for pickups and light commercial vehicles – a must-have guide for your next mission.

These lights are sold individually and does not include a harness (whip included).

Wiring Harnesses:

For 1- 10" or 20" Light

For 2 - 10" Lights

For multiple 20" Lights

Specifications

	10 Inch	20 Inch
VOLTAGE	10-48V DC	10-48V DC
CONSUMPTION (W) 12V	Main Beam 75	Main Beam 159
	Position Light 2	Position Light 2
CONSUMPTION (W) 24V	Main Beam 72	Main Beam 157.8
	Position Light 2	Position Light 2
ACTUAL LUMEN	5010	10670
1 LUX @ m	363	496 m
IP CLASS	IP68	IP68
BEAM PATTERN	Combo	Combo
BEAM COLOUR	6000K	6000K
POSITION LIGHT	Yes, (white & amber)	Yes, (white & amber)
CONNECTION	DT4	DT4
CABLE LENGTH (mm)	500	500
MATERIAL HOUSING	Aluminium	Aluminium
MATERIAL LENS	Polycarbonate	Polycarbonate
MATERIAL SIDE BRACKET	304 Stainless Steel	304 Stainless Steel
MATERIAL SLIDING BRACKET	Aluminium	Aluminium

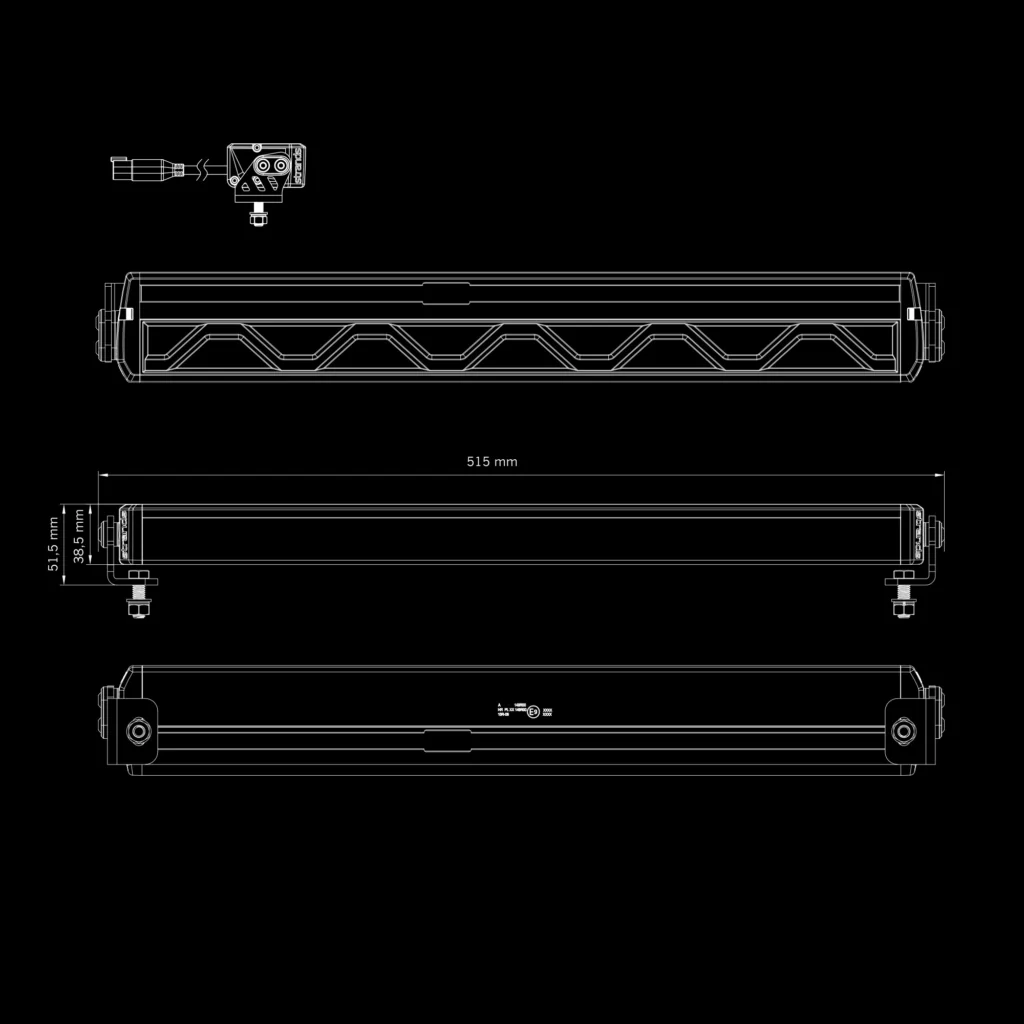

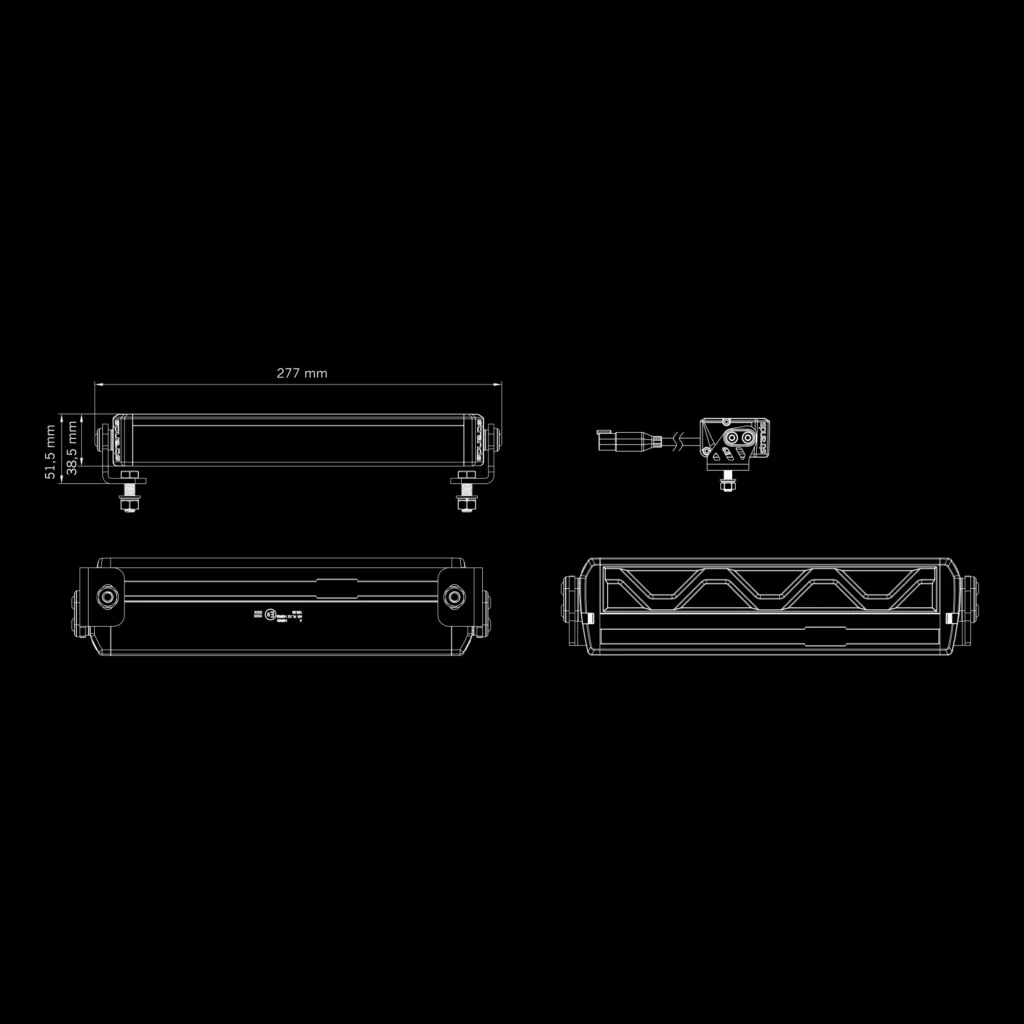

LENGTH (mm)	277	515
DEPTH (mm)	70	70
HEIGHT (mm)	38.5	38.5
HEIGHT INCLUDING BRACKET (mm)	56	56
OPERATING TEMPERATURE	-40°C - +65°C	-40°C - +65°C
E-APPROVED	ECE R148, R149	ECE R148, R149
EMC-CERTIFICATE	ECE R10	ECE R10
